Mitsubishi FDT125AVNXWVH

Specifications

Capacity

• Cooling: 12.5 kW
• Heating H1: 14.0 kW
• Heating H2: 14.7 kW

Unit Details

• Set Model: FDT125AVNXWVH

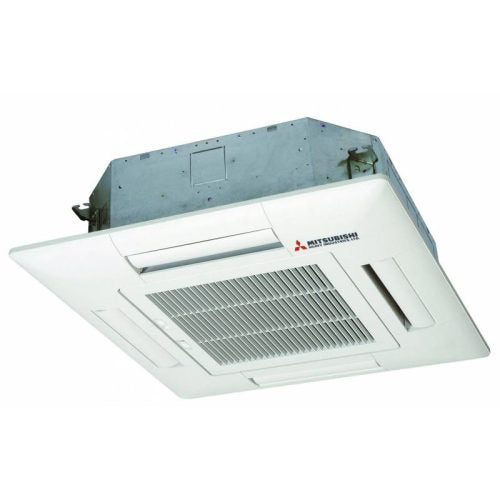

• Indoor Unit: FDT125VH
• Outdoor Unit: FDCA125VNX-W
• Power Source (Outdoor Unit): Single Phase, 240V, 50Hz

Operation Data

Nominal Capacity (Range)

• Cooling T1: 12.5 kW (Range: 3.5–14.0 kW)
• Heating H1: 14.0 kW (Range: 2.7–17.0 kW)

Power Consumption

• Cooling T1: 3.21 kW
• Heating H1: 3.43 kW
• Maximum Power Consumption: 7.10 kW

Running Current

• Cooling T1: 14.2 A
• Heating H1: 15.1 A

Inrush Current / Maximum Current

• Inrush Current: 5 A
• Maximum Current: 27 A

Efficiency Ratings

• EER (Cooling T1): 3.89
• COP (Heating H1): 4.08

Sound Levels

Sound Power Level (JIS C9612)

• Outdoor Unit: 70 dB(A)

Sound Pressure Level (JIS C9612)

• Indoor Unit:
• Outdoor Unit: 54 dB(A)

Dimensions and Weight

Indoor Unit

• Dimensions: 298 x 840 x 840 mm
• Panel Dimensions: 35 x 950 x 950 mm
• Net Weight:

Outdoor Unit

• Dimensions: 1300 x 970 x 370 mm
• Net Weight: 97 kg

Airflow (Indoor)

Cooling

• P-Hi: 633 l/s
• Hi: 467 l/s
• Me: 417 l/s
• Lo: 300 l/s

Heating

• P-Hi: 633 l/s
• Hi: 467 l/s
• Me: 417 l/s
• Lo: 300 l/s

Installation Data

Refrigerant

• Type: R32
• Quantity: 4.0 kg
• Pre-Charged to Pipe Length: 30 m

Piping

• Liquid Line Diameter: Ø9.52 mm
• Gas Line Diameter: Ø15.88 mm
• Connection Method: Flare

Maximum Pipe Length

• One Way: 100 m

Maximum Vertical Height Difference

• Outdoor Unit Above Indoor Unit: 50 m
• Outdoor Unit Below Indoor Unit: 15 m

Controller Options

• Standard: RC-E5, RC-EXZ3A, RCH-E3
• Panel-Integrated Options:
• Optional Motion Sensor:

Environmental Limits

• Cooling Temperature Range: -15°C to 50°C
• Heating Temperature Range: -20°C to 20°C

• High Cooling and Heating Capacity:
  Delivers 12.5 kW of cooling and 14.0 kW of heating, ensuring maximum comfort even in extreme conditions.
• Exceptional Energy Efficiency:
  Equipped with an EER of 3.89 and a COP of 4.08, reducing energy consumption and operating costs.
• Quiet Operation:
  Low noise levels for both indoor (as low as 31 dB) and outdoor units (54 dB), making it ideal for noise-sensitive environments.
• Flexible Installation:
  Supports a maximum pipe length of 100 meters and a height difference of up to 50 meters, offering versatile placement options.
• Durable Construction:
  Built with premium components to ensure reliable and long-lasting performance in demanding conditions.
• Compact Design:
  Space-saving indoor and outdoor unit dimensions make it easy to integrate into various settings.
• Advanced Refrigerant System:
  Uses eco-friendly R32 refrigerant with a pre-charge capability of 30 meters for environmental sustainability.
• Smart Controls:
  Compatible with multiple controller options, including optional motion sensors and customizable panel designs for added convenience.
• Wide Operating Range:
  Functions effectively in outdoor temperatures ranging from -15°C to 50°C for cooling and -20°C to 20°C for heating.
