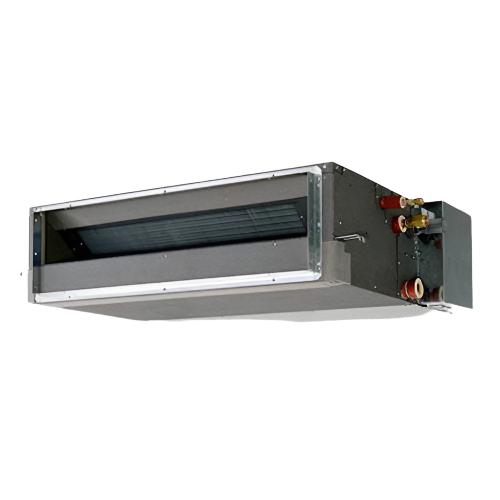

Hitachi RAD-E50YHA (5.0kW)

Dimensions

Indoor Unit

Height: 270 mm

Width: 900 mm

Depth: 720 mm

Weight: 35 kg

Outdoor Unit

Height: 750 mm

Width: 850 mm

Depth: 298 mm

Weight: 50 kg

Capacity

Cooling: 5 kW

Heating: 6 kW

Power

Phase: Single Phase

Nominal Power Supply: 230V AC

Installation

Maximum Pipe Length: 30 m

Maximum Height Difference: 20 m

Other

Liquid Connection Size: 1/4"

Gas Connection Size: 1/2"

• Space Saving Design with a height of 270mm the RAD-E50, 60 and 70 can be installed in almost any application, including homes, apartments or commercial buildings.
• Easy Installation & Maintenance. Separable design unit for easier installation in limited roof space (RPI-3.0-6.0FSN250).
• Whisper Quiet. Ducted air conditioning systems are one of the quietest types of air conditioning with installed sound levels quieter than an equivalent capacity wall mounted air conditioners.
• Discreet Concealed Installation. The indoor ducted unit is designed to fit into ceiling spaces where it supplies conditioned air through ducting to required rooms.
• Ducted systems provide concealed ceiling air conditioning that doesn’t occupy valuable wall space and air diffusers can be positioned to fit around lighting and other fixtures.
• Energy Saving Features at the push of a button, Eco Mode efficiently delivers a slightly reduced temperature to help keep energy consumption to a minimum. Hitachi RAD Series have ultra low standby power to further increase energy efficiency.

Wifi Control for your Hitachi air conditioner*

Installing the optional airCloud Home wifi controller will give you the ability to control your air conditioner from your smartphone via the airCloud Home app.Operate your Hitachi air conditioner when you're away from home, adjust the temperature and fan speed and set custom schedules.( * Applicable to RAD Ducted Systems only )

SPX-WKT2 Wired Controller

Applicable to indoor models RAD-E50, 60, 70:

• Room temp indication
• 24/7 time schedule
• Eco mode
• Sleep timer
• Backlight display

Advanced Wired Controller (PC-ARF1)

Included with the following indoor models: RPI-4.0, 5.0, 6.0 & 7.0The Advanced Wired Controller provides additional functions to monitor your ducted air conditioner and ensure it is running efficiently:

• 24/7 Weekly Time Scheduler
• Eco-mode
• Room temperature indication
• Sleep timer
• Power consumption display
• Backlight display
