Fujitsu ARTC90LATU-3 Phase (25.0kW)

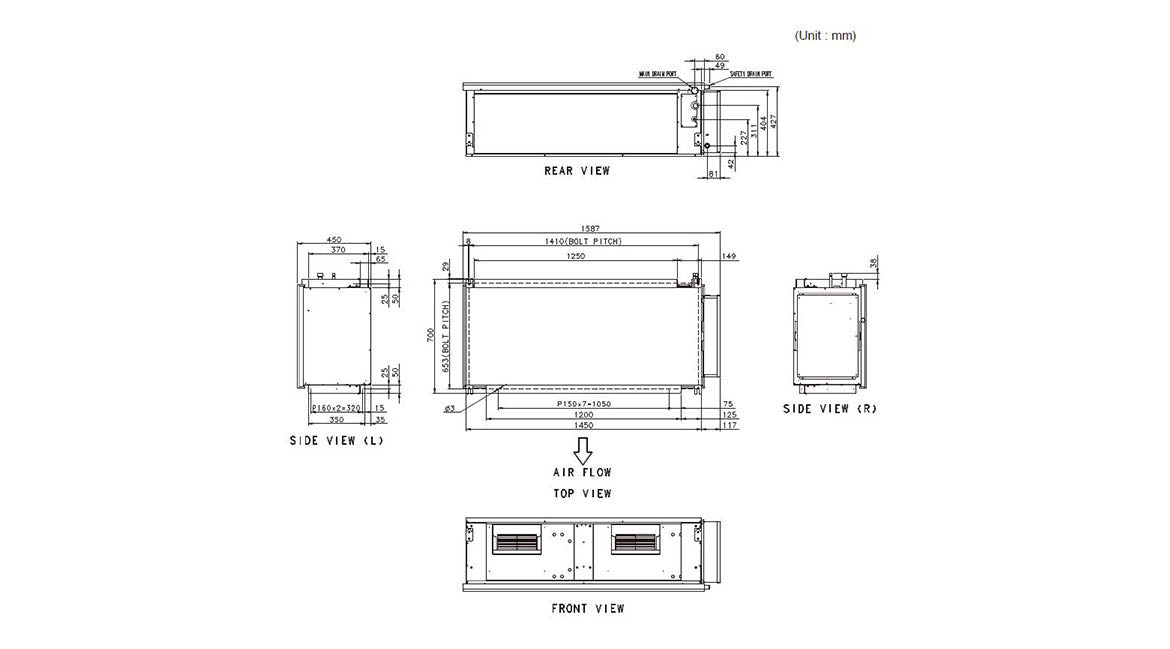

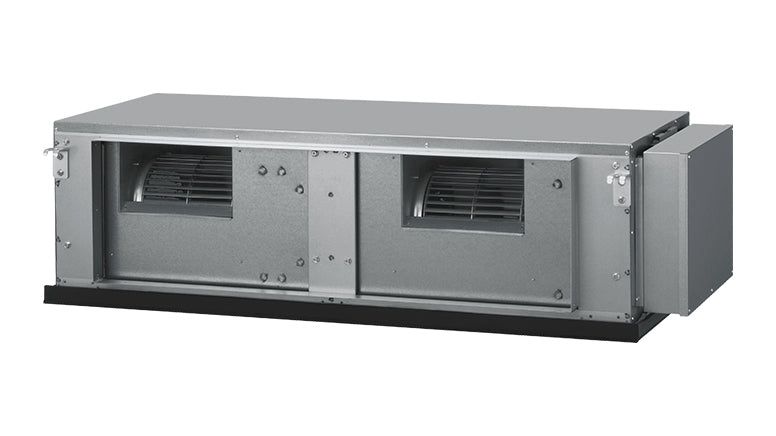

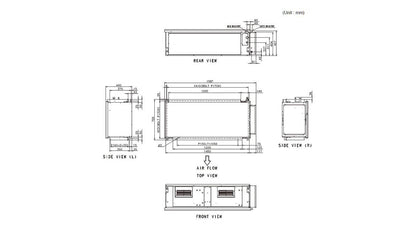

Indoor Unit

Model: ARTC90LATU

Dimensions: 550 x 1587 x 700 mm

Weight: 110 kg

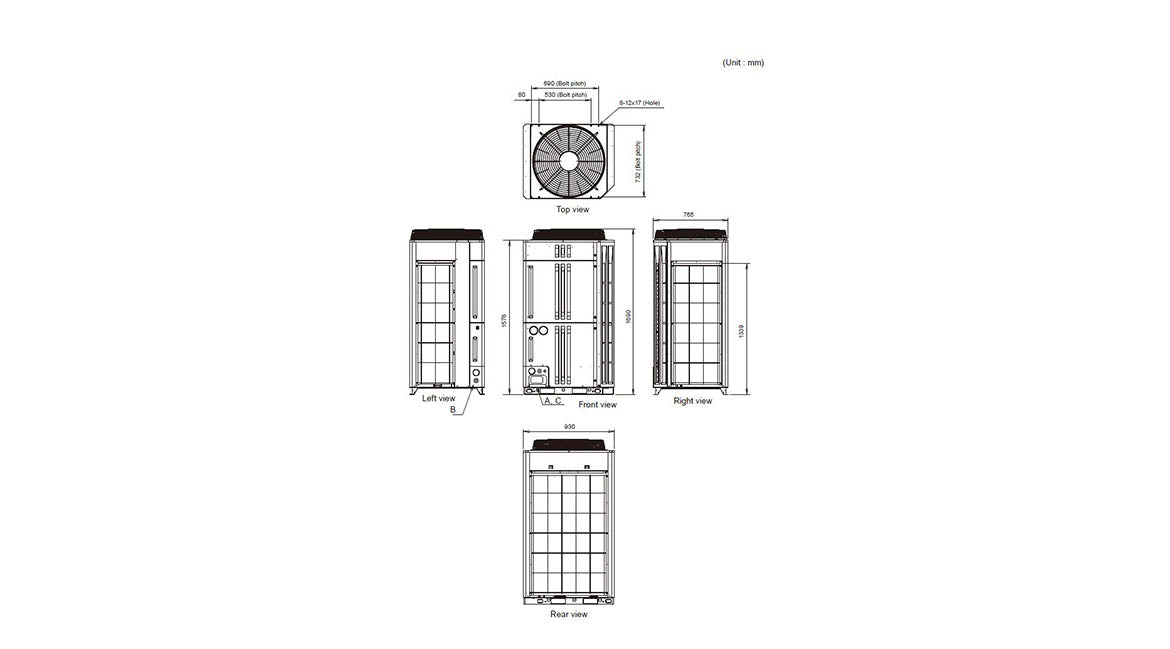

Outdoor Unit

Model: AOTA90LALTO

Dimensions: 1690 x 930 x 765 mm

Weight: 215 kg

Performance

Cooling Capacity: 25 kW

Heating Capacity: 28 kW

Energy Efficiency Rating (EER): 3.2

Coefficient of Performance (COP): 3.4

Star Rating (Cooling): 2.0/1.5/1.5

Star Rating (Heating): 1.5/1.5/1.0

Other Features

Refrigerant Type: R410A

Refrigerant Amount: 11,200 g

Maximum Pipe Length: 75 m

Maximum Height Difference: 30 m

Zone Control: This function allows you to control the temperature in different zones of your home.

All DC: This technology helps to reduce energy consumption.

Auto Restart: The unit will automatically restart itself if there is a power outage.

Auto Changeover: The unit will automatically switch between cooling and heating modes.

Blue Fin Heat Exchanger: This technology helps to protect the unit from corrosion.

Connectable Distributing Duct: This feature allows you to connect the unit to a duct system.

Connectable Fresh Air Duct: This feature allows you to introduce fresh air into the unit.

Economy Mode: This mode helps to save energy by limiting the maximum operation current.

Filter Sign: This feature will remind you to clean the filter.

On-Off Timer: This timer allows you to turn the unit on and off at specific times.

Program Timer: This timer allows you to create a schedule for the unit to turn on and off at different times.

Weekly Timer: This timer allows you to create a weekly schedule for the unit to turn on and off at different times.

Automatic Fan Speed Adjustment: This feature automatically adjusts the fan speed to maintain the desired temperature.
